View Users

This topic covers viewing Users in the SG-DSR Manager and in System Galaxy.



NOTES & PREREQUISITES

  1. The DSR Assa Abloy Service must be running on the DSR Server.

  2. The GCSWeb API Service must be running on the Galaxy Communication Server.

  3. The Core GCS Services must be running on the Galaxy Communication Server (GCS ClientGW, GCS Comm, GCS DBwriter, GCS Event )

  4. You must be logged into the SG-Manager App using a valid SG Operator login.

  5. You must have enrolled at least one User and Card and assigned a DSR Authorization to the card.





VIEWING USERS (in SG-DSR Manager App)

Launch the SG-DSR Manager app as needed and sign in with a valid SG Operator login.





  1. Select the Users tab to begin.

  2. The users will display in the list.

  3. If you want to see how many users are in the Lock, the use DSR Support Tool and select the Lock Details in the Lock List.

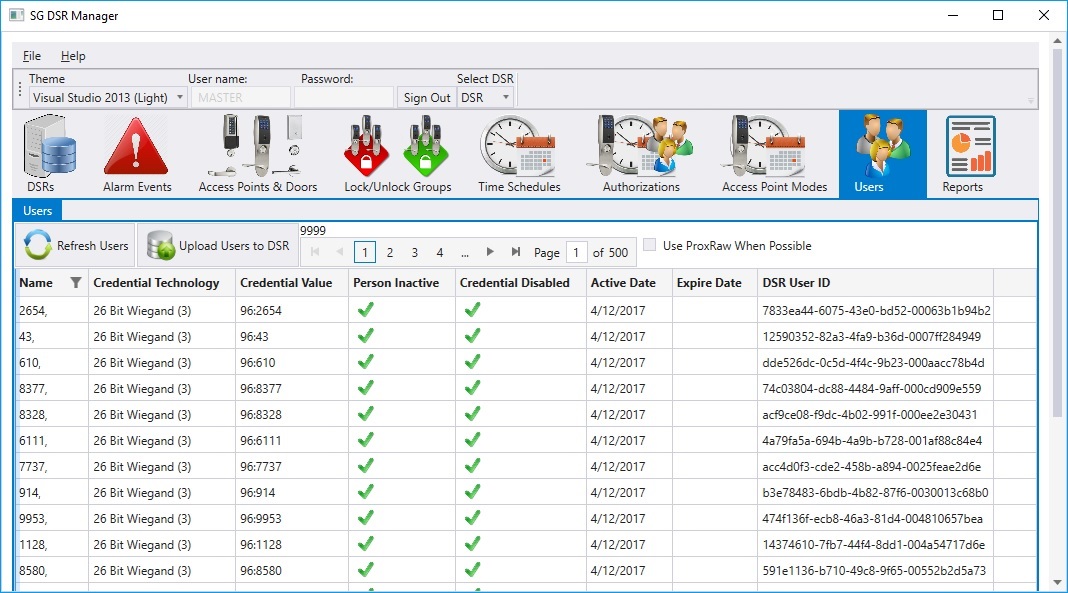

Click thumbnail to see screenshot

View Users
