Who's In Report

This topic covers functionality related to viewing the Who's In Report.



FEATURED TOPICS

Overview and Prerequisites

Who's In - by Area (Muster)

Who's In - by Cardholder



Overview and Prerequisites

The Who's In Report is a real-time snapshot of the List of Cardholders that are "in" a designated area (or that meet a specific criteria set by the user) when the report is queried.

PREREQUISITES AND NOTES

  • The user login account must have the correct permissions needed to view and print the report.

  • If there is no data to match the selected report criteria, the report will show "no data found".



TERMS

"Real-time snapshot" means the data is real-time at the moment in time the report is queried. note:Closed the place the Who's In Page remains static until the user refreshes (F5) the data. Then LaunchPoint retrieves another real-time snapshot of the data.

"View Status" is the selector that specifies whether the data is 'by area' or 'by cardholder'.

"Area" is a group of doors and readers that are configured to create a designated secure area in the system that can be tracked or monitored for activity. more:Closed  Areas are assigned "in" and "out" readers so that the system can track when and if any cardholders enter or leave the designated area.

RULES OF OPERATION

  • The user chooses which Status to view (i.e., by area or by cardholder) and sets any other criteria as appropriate.

  • LaunchPoint grabs a real-time snapshot of the Cardholders that meet the View Status and criteria.

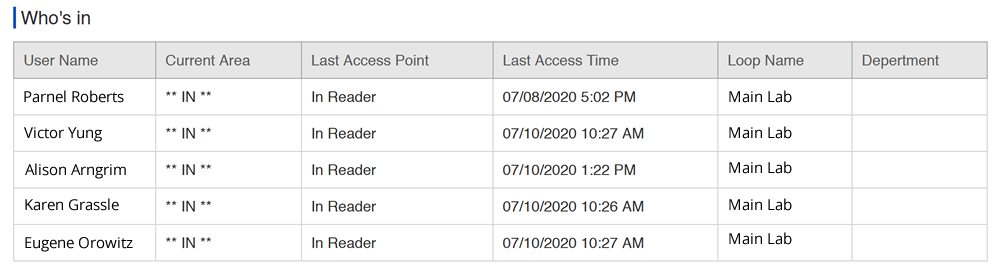

  • The Who's In Report opens and displays the List of Cardholders in a new browser tab.

  • The Who's In Report (List of Cardholders) is static and does not receive updates unless the user refreshes (F5) the page.

  • The Who's In Page cannot be printed or exported - the List of Cardholders is only viewed online.

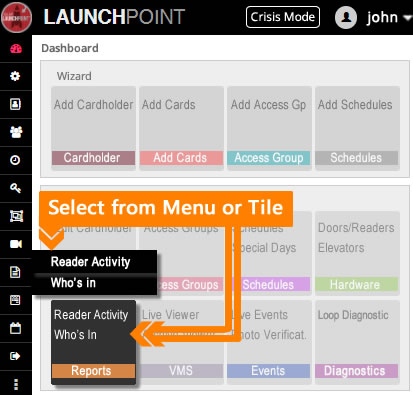

OPEN THE WHO'S IN REPORT

There are two ways to open the Who's In Report Page ...

  • Side Menu: select "Reports" menu icon and select the Who's In option.

  • Dashboard: select 'Reports' tile and select the Who's In option



× Reports Icon (from sidebar menu)

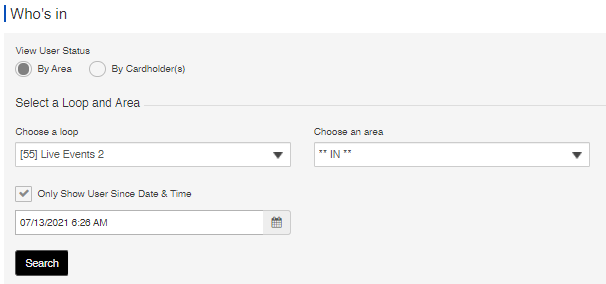

Pulling Who's In Report by Area

The fields in the page change dynamically depending on what is selected in the User Status field.

There are 2 ways to pull the Who's In Report

User can choose to pull the report ...

  • by Area

  • by Cardholder



The available fields will change based on whether you choose "by Area" or "by Cardholder".





STEPS

  1. Select the By Area radio button.

  2. Choose a Loop/Cluster. (You must select a loop, you cant select more than one loop name)

  3. Choose an Area (i.e. IN, OUT, NO AREA, or NO CHANGE, ...)

  4. (optional) You can narrow your search criteria by "checking" the Only Show Since Date/Time checkbox and choosing a date.

  5. Click the Search button to query the report - which opens the Who's In Report in a new tab.

  6. To refresh/update the Who's In Report, user must press F5 keyboard key.

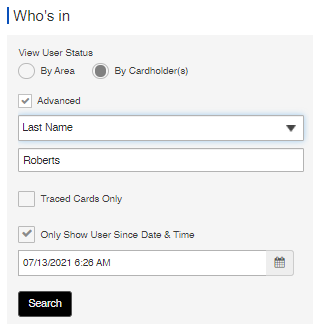

Pulling Who's In Report by Cardholder

The fields in the page change dynamically depending on what is selected in the User Status field and other criteria.



STEPS

  1. Select the By Cardholder radio button.

  2. (optional) you can check the Advanced checkbox to narrow your search results.

  3. Choose an Data Field (i.e. Firs Name, Last Name, ...)

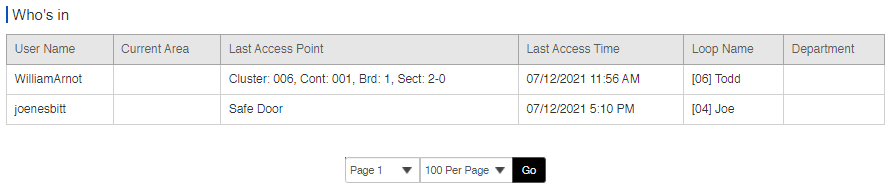

  4. (optional) You can filter results by checking the Trace Cards checkbox. When checked, the data set will only include cards with trace enabled on the card/cardholder.

  5. (optional) You can narrow your search criteria by "checking" the Only Show Since Date/Time checkbox and choosing a date.

  6. Click the Search button to query the report - which opens in a new tab.
